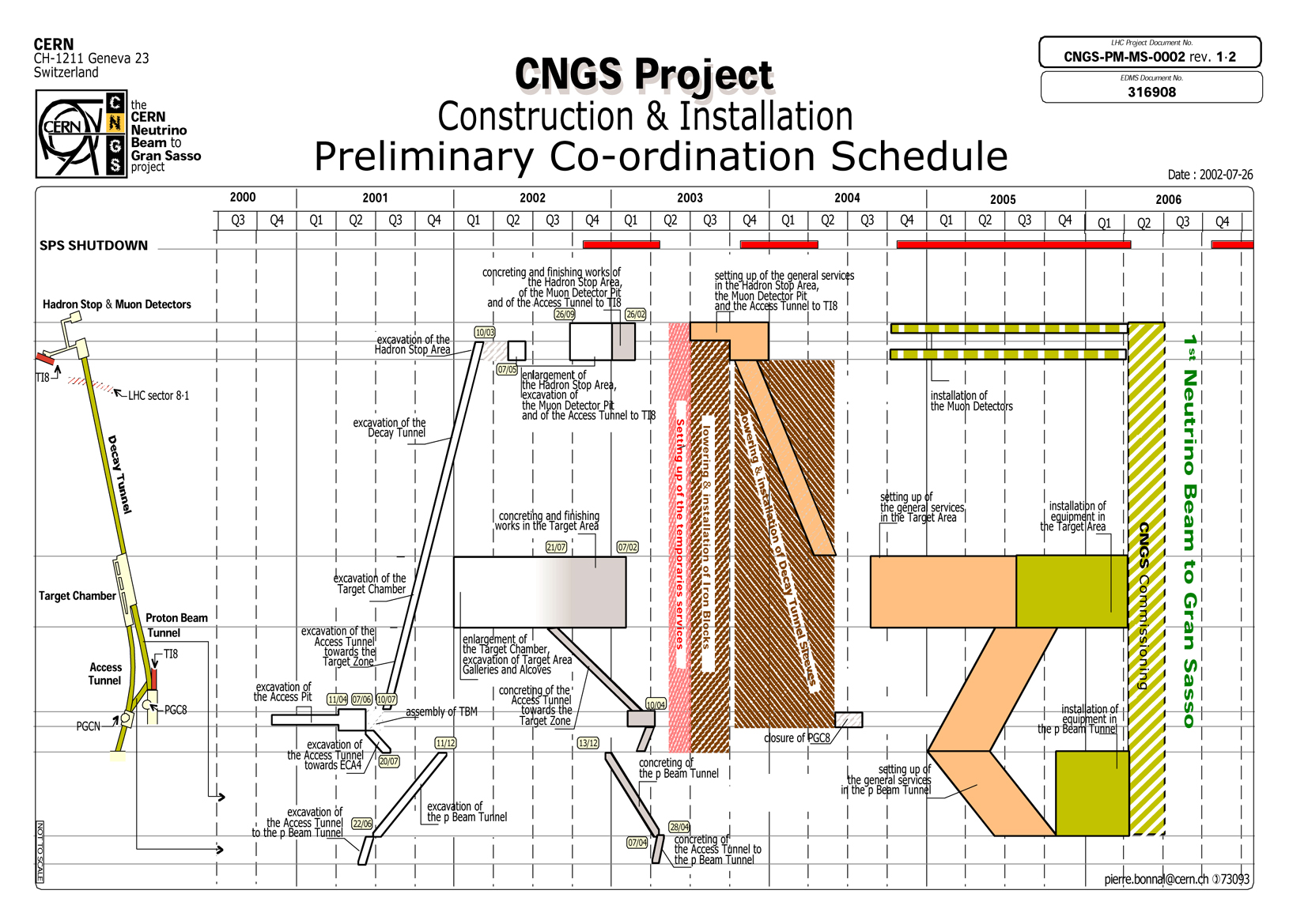

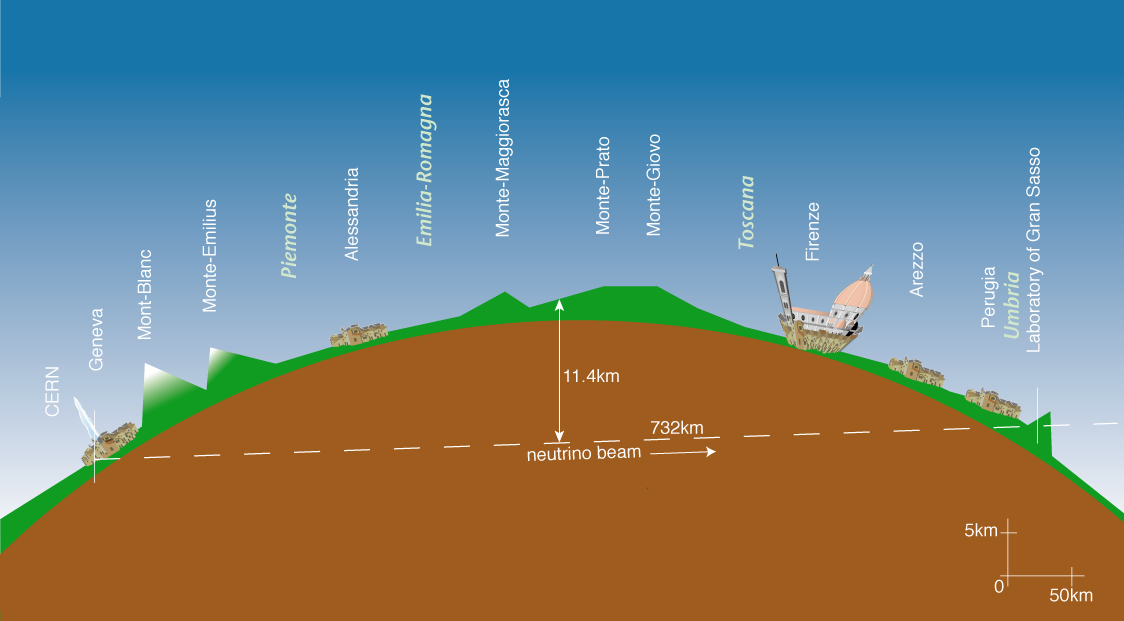

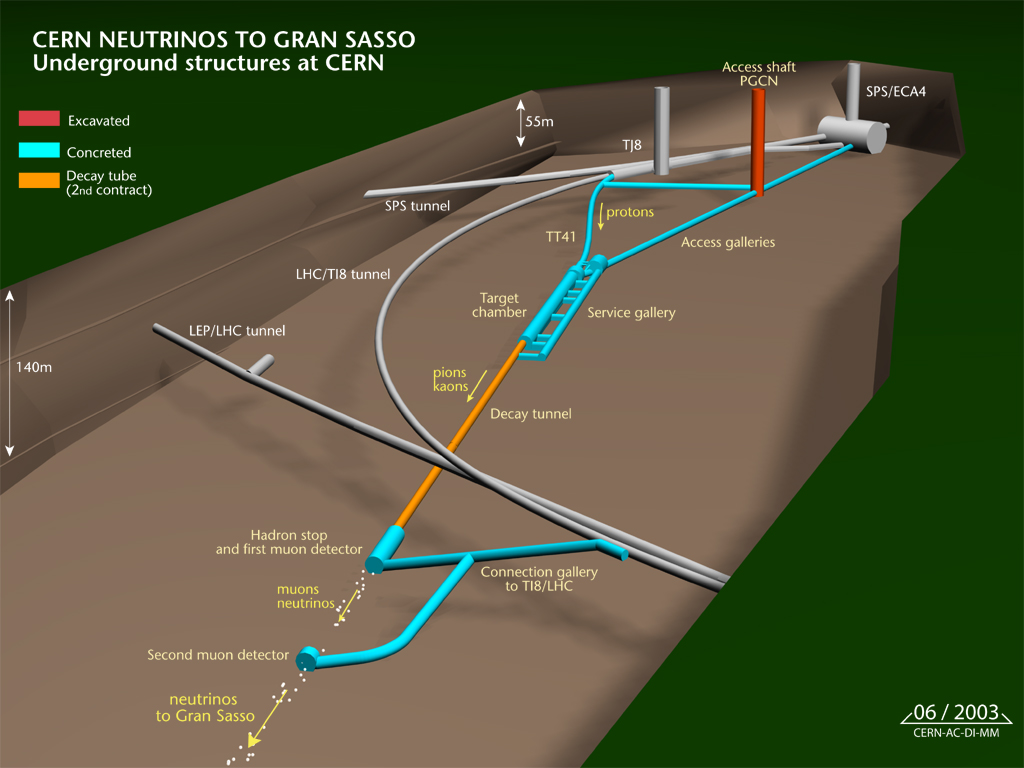

- Underground structures at CERN
- English version / 06-2003
|
[jpg] 307k |
| [jpg] 1.1M |
| _ |
| _ |
|
 |
Underground structures at CERN
|
[jpg] |
 |

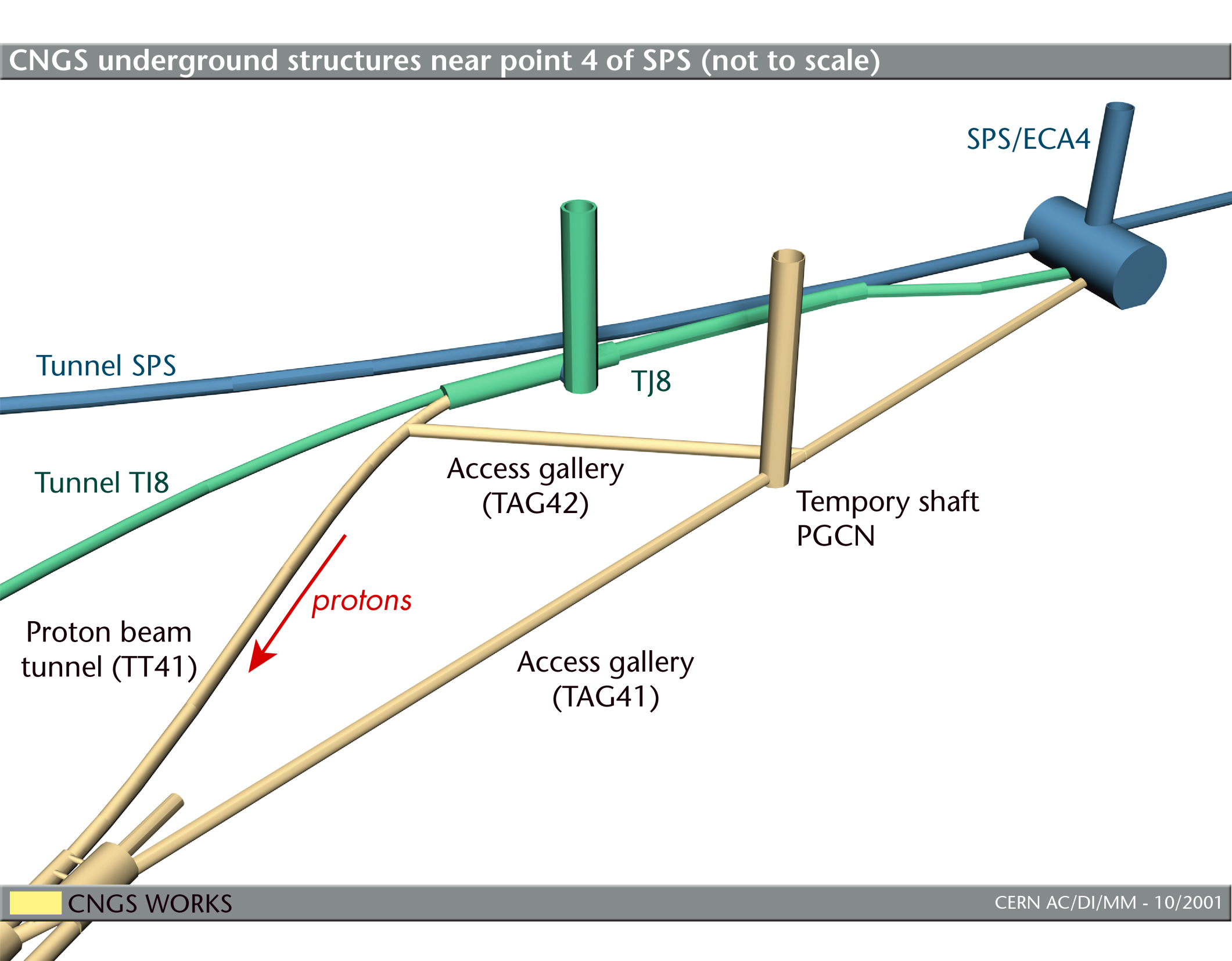

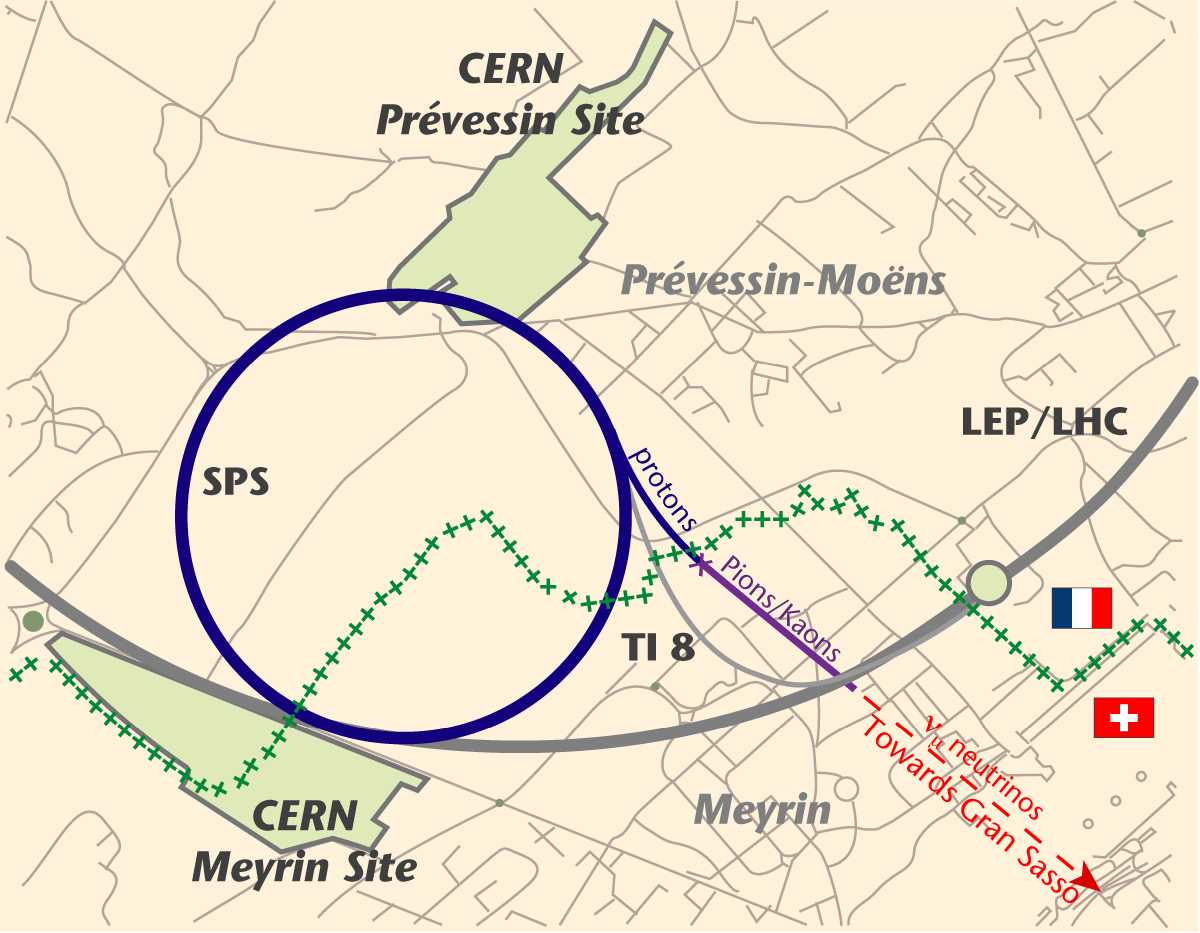

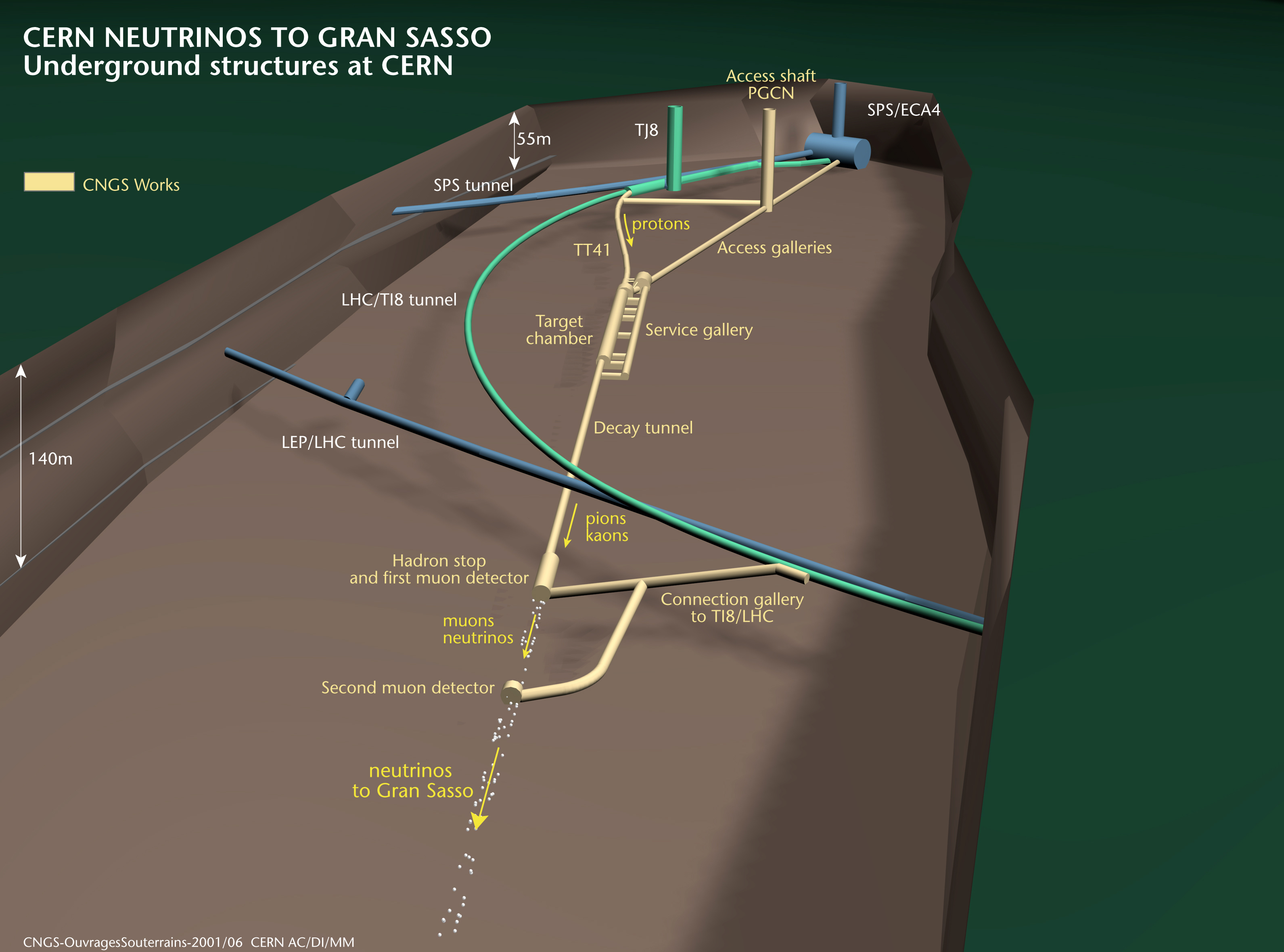

- CNGS underground structures near point 4 of SPS
- English version / 06-2001
|
[jpg]
(340k) |
 |

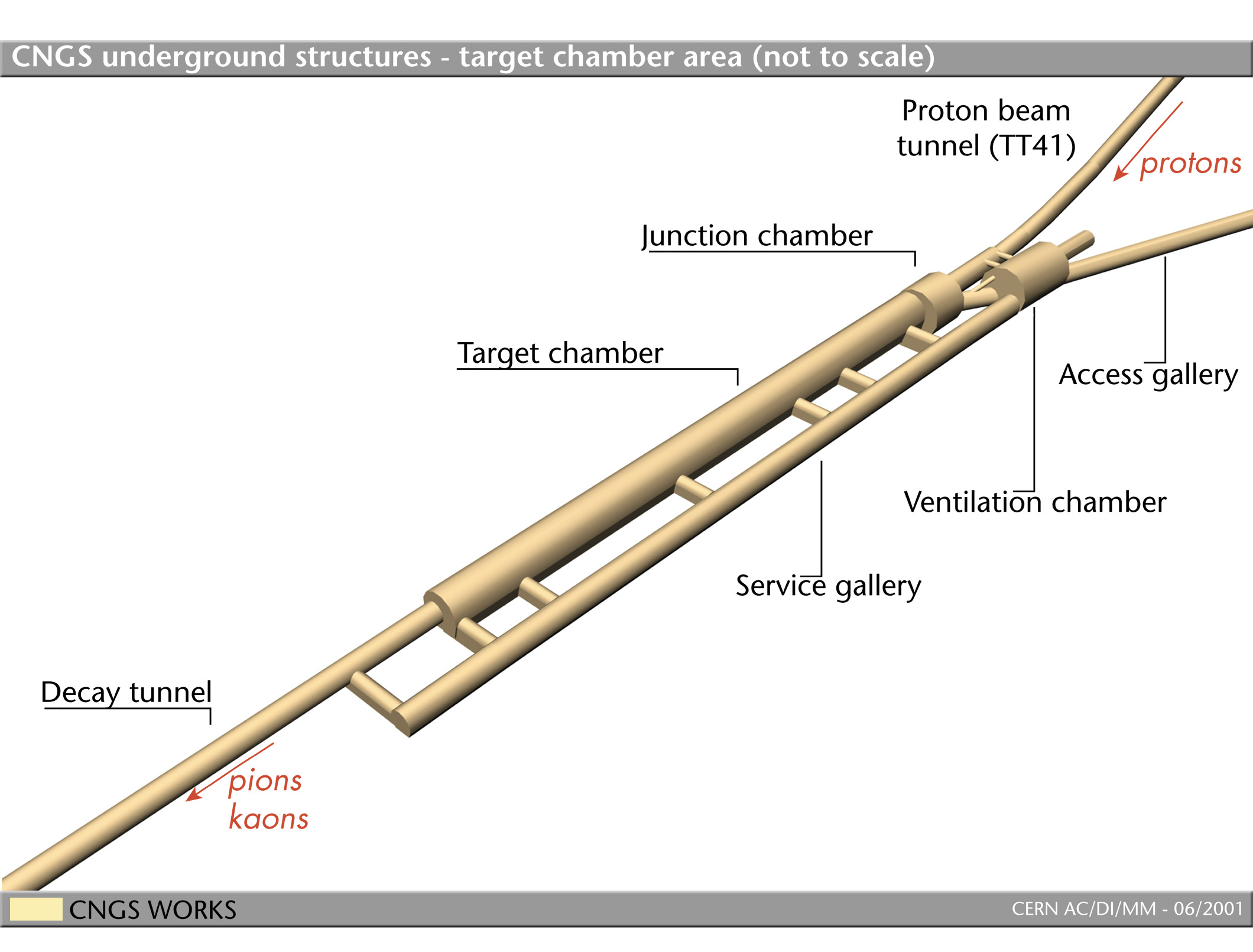

- CNGS underground structures - target chamber area
- English version / 06-2001
|
[jpg]
(307k) |
|
 |
- CNGS underground structures - target chamber area
with names
-
|
[jpg]
(307k) |
 |

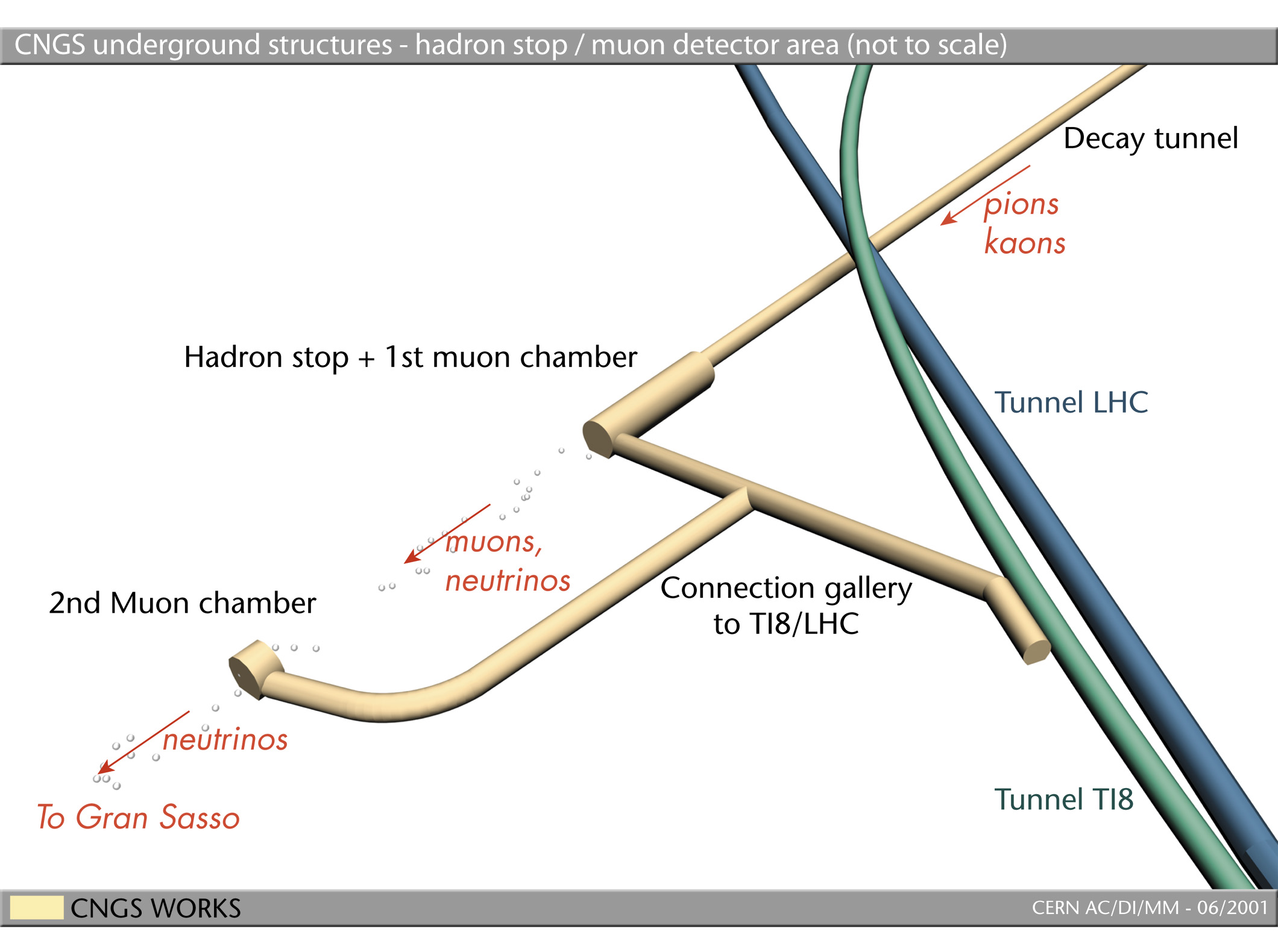

- CNGS underground structures -
- hadron stop / muon detector area,
- English version / 06-2001
|
[jpg]
(350k) |
|
 |
- CNGS underground structures -
- hadron stop / muon detector area,
- with
names of galleries and caverns
|
[jpg]
(350k) |
 |

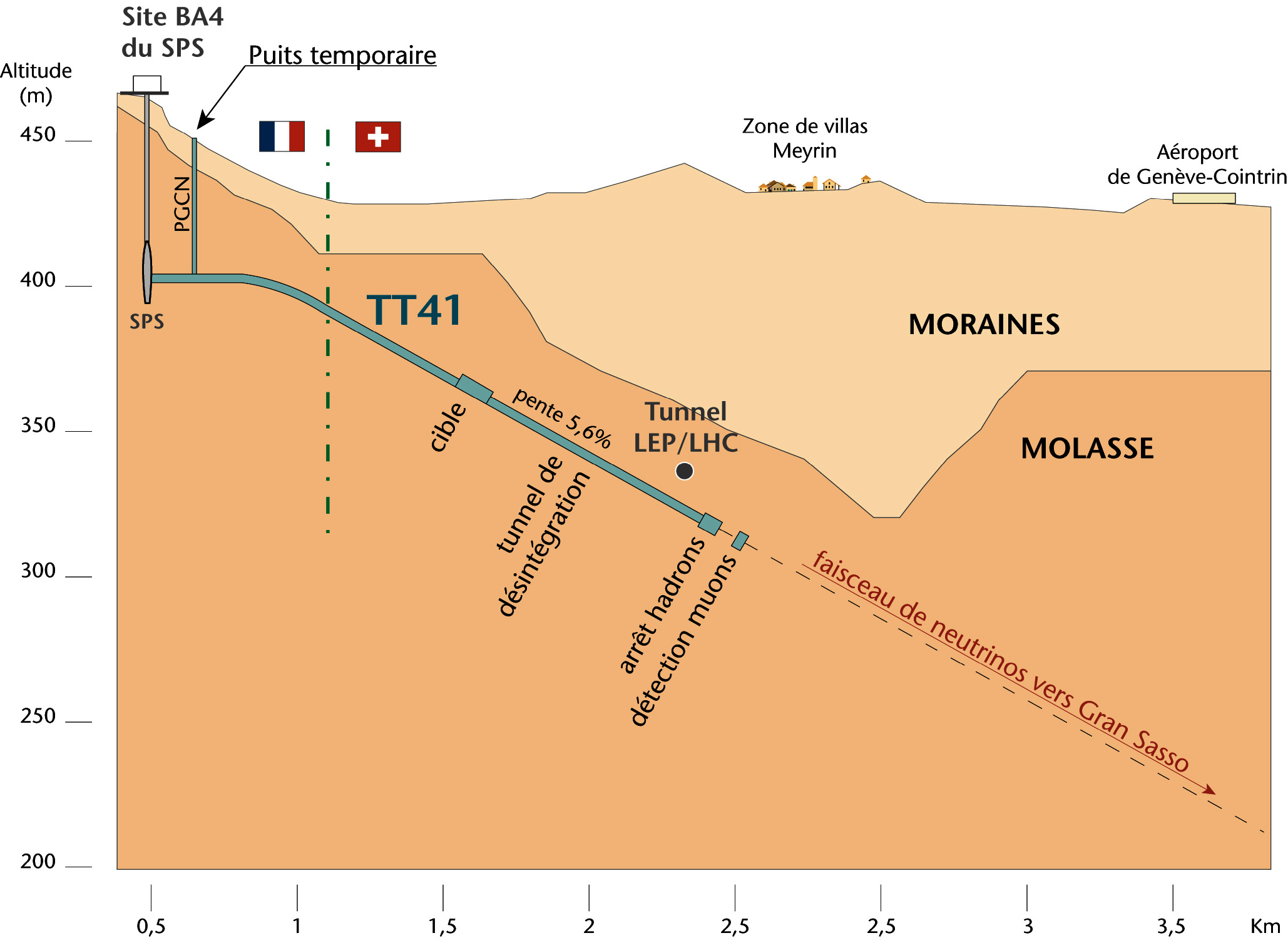

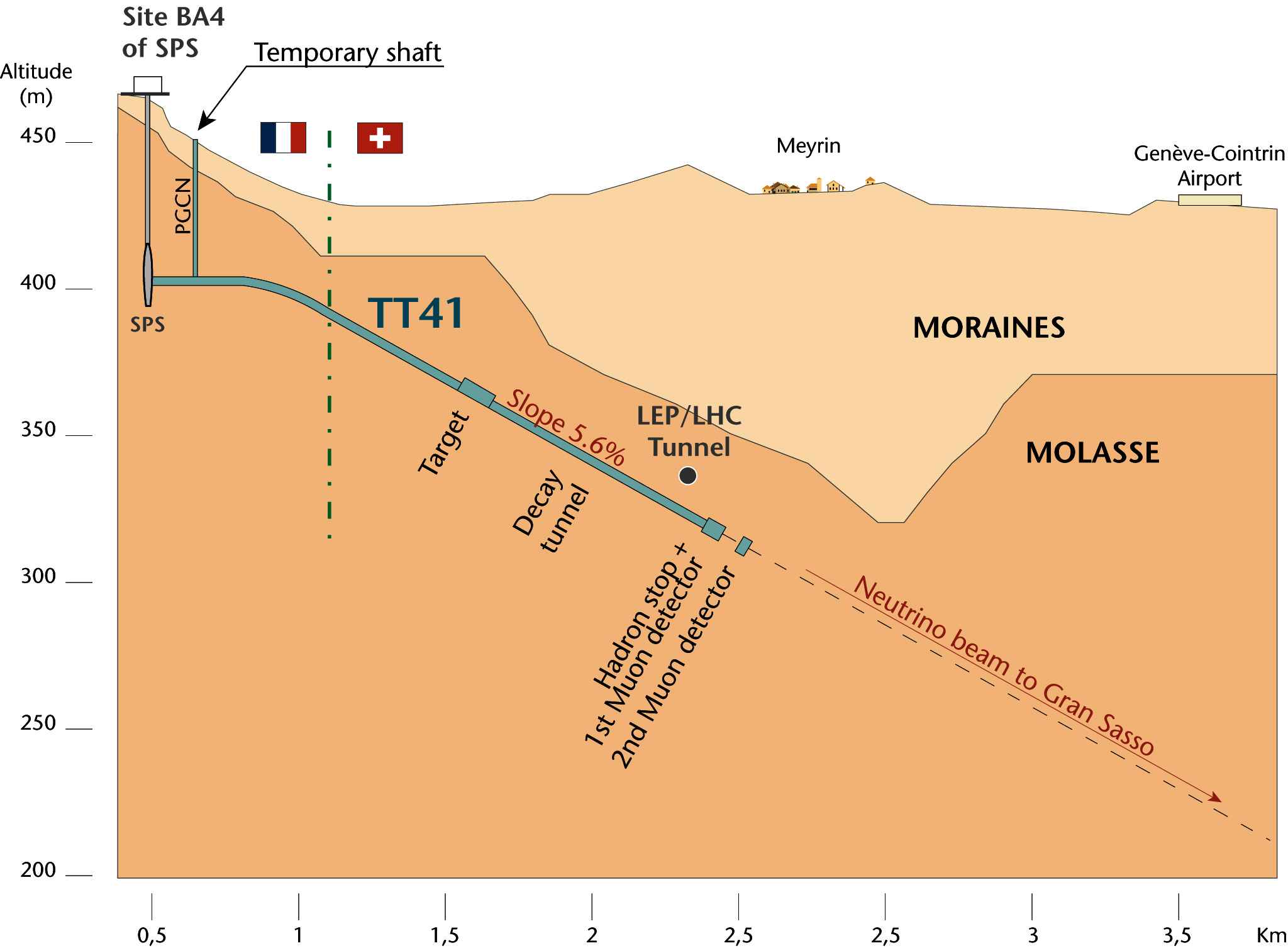

- Works connected with the CNGS project: section
- Coupe verticale des ouvrages du projet CNGS
- Version 09-2000
|
[jpg] (239k) English version |
| [eps] (327k) English version |
| [jpg] (241k) Version Fran�aise |
| [eps] (327k) Version Fran�aise |
